| Temperature Controller Options | Basic Controller, Advanced LT Controller, Advanced System Controller, Advanced Ventilation Controller 110/220, Advanced Ventilation Controller 12V DC |
|---|---|
| DCFT-VS-CGVS-BSC | Basic Controllers |

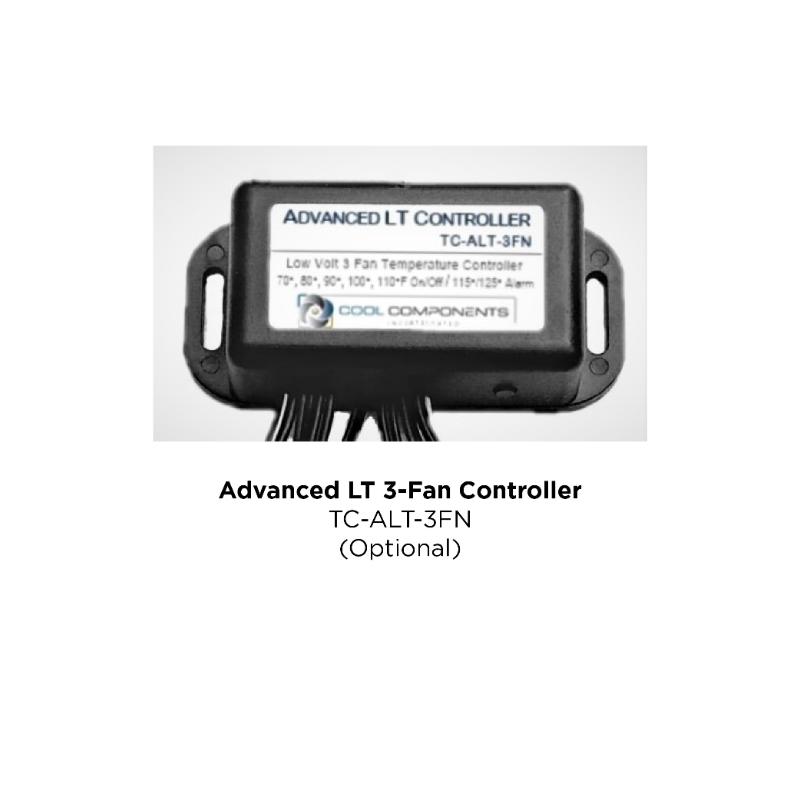

| DCFT-VS-CGVS-ALT | Advanced LT Controllers |
| DCFT-VS-CGVS-ASC | Advanced System Controller |

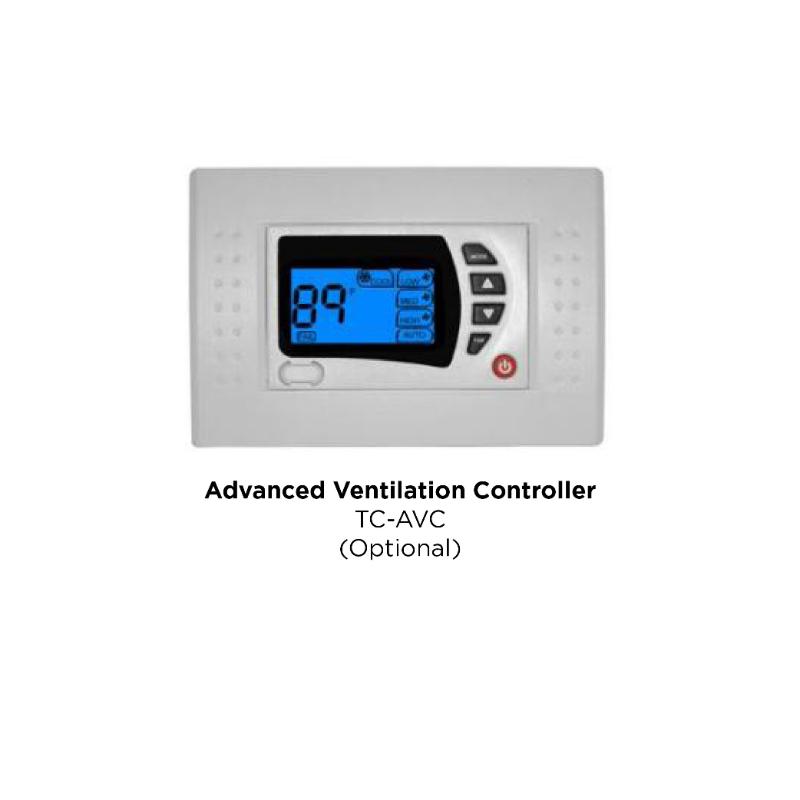

| DCFT-VS-CGVS-AVC | Advanced Ventilation Controller |
| DCFT-VS-CGVS-AVC-12VDC | Advanced Ventilation Controller (12VDC) |
| General Specifications | Fan Unit Dimensions: 20" x 20" (50.8 cm x 50.8 cm) |
Drop Ceiling Grid Fan Tray Exhaust Vent System for 2×2
Price range: $510.00 through $705.00

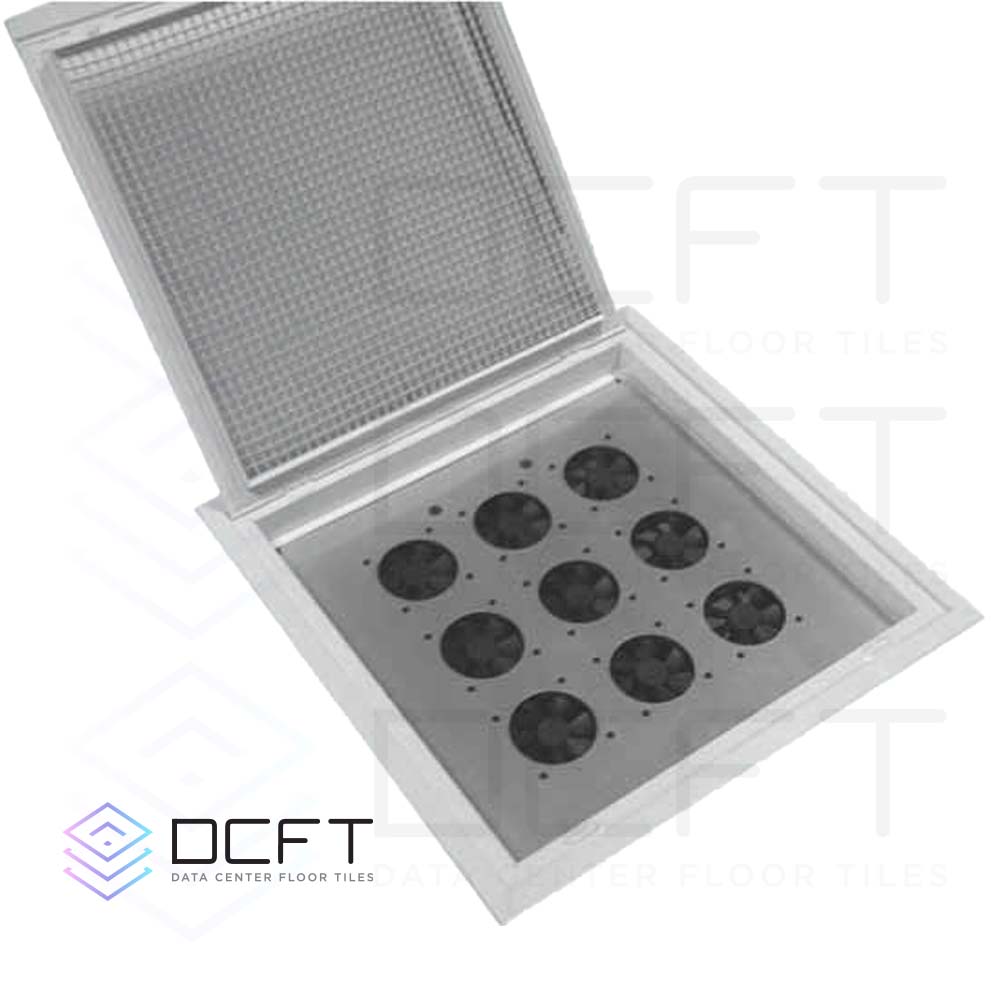

The Drop Ceiling Grid Vent System is an easy to install high-performance server room exhaust fan and airflow solution.

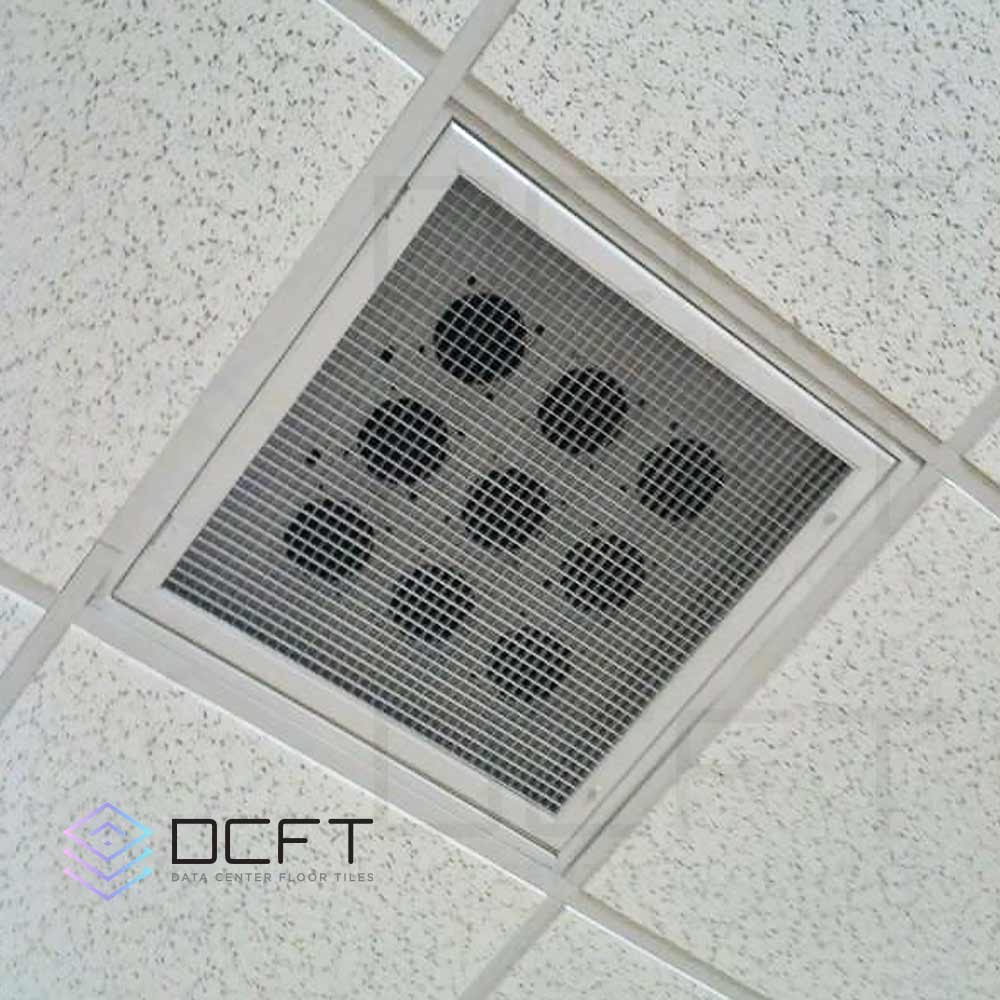

The Ceiling Grid Vent System is engineered for efficient and continuous exhaust ventilation of server equipment rooms and closets. Designed to fit seamlessly into a standard 2×2 suspended ceiling grid ceiling tile space, this powerful unit features nine professional-grade 120mm DC exhaust fans that deliver up to 575 CFM of airflow—quietly and effectively.
Crafted from lightweight aluminum with a clean white enamel finish, the unit blends into any server room ceiling space. Its hinged grid face allows for easy access during cleaning or maintenance.
For suspended ceiling environments sensitive to noise, optional advanced temperature controllers (sold separately) are available to adjust fan speeds automatically or modify activation thresholds for optimal performance.

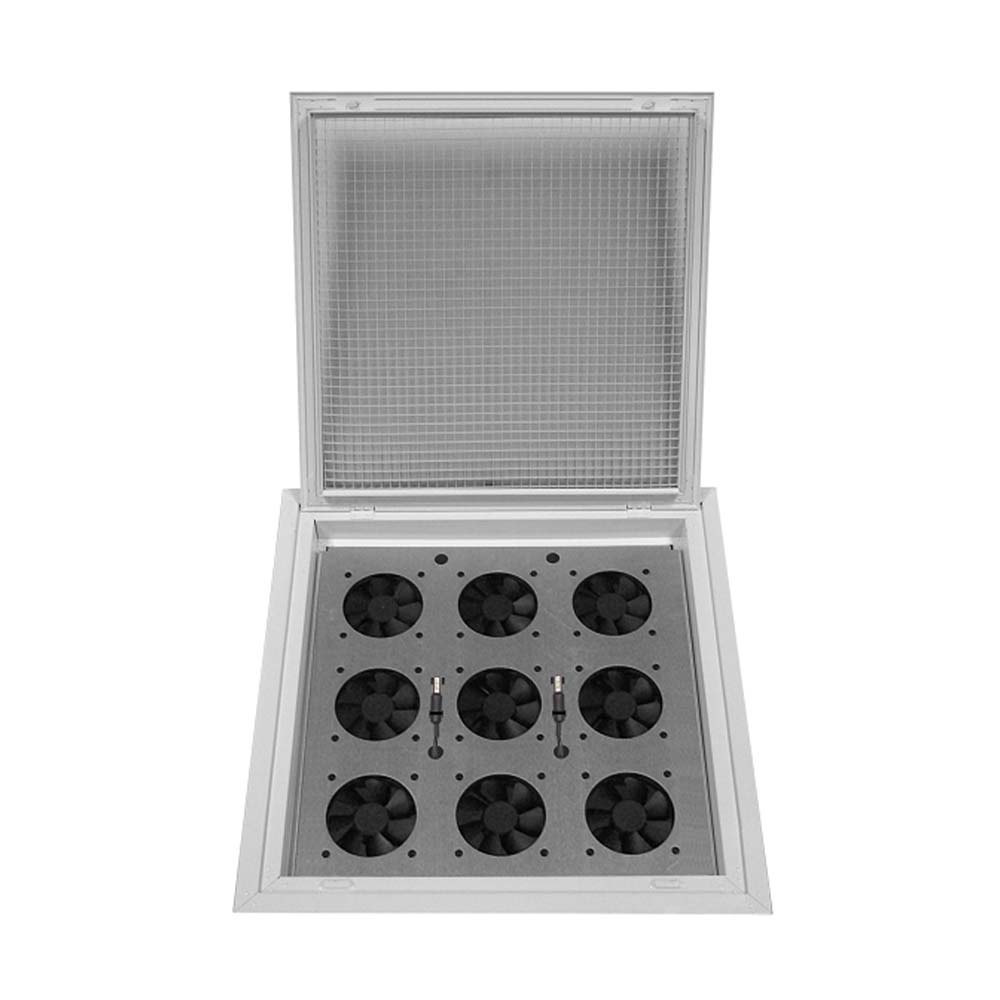

This package includes the complete Fan Housing, a 9-Fan Panel, and two Power Supplies—allowing separate power to each fan bank for redundancy and flexibility.
Note: Photos are for illustrative purposes only. The temperature control functionality shown is not included on the standard unit.

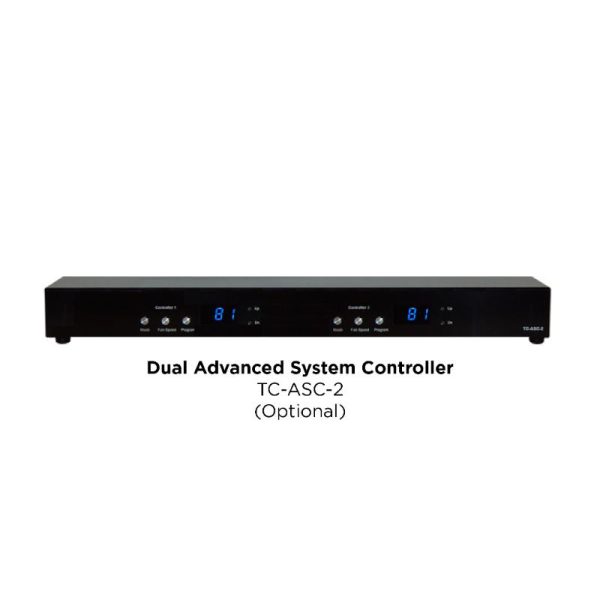

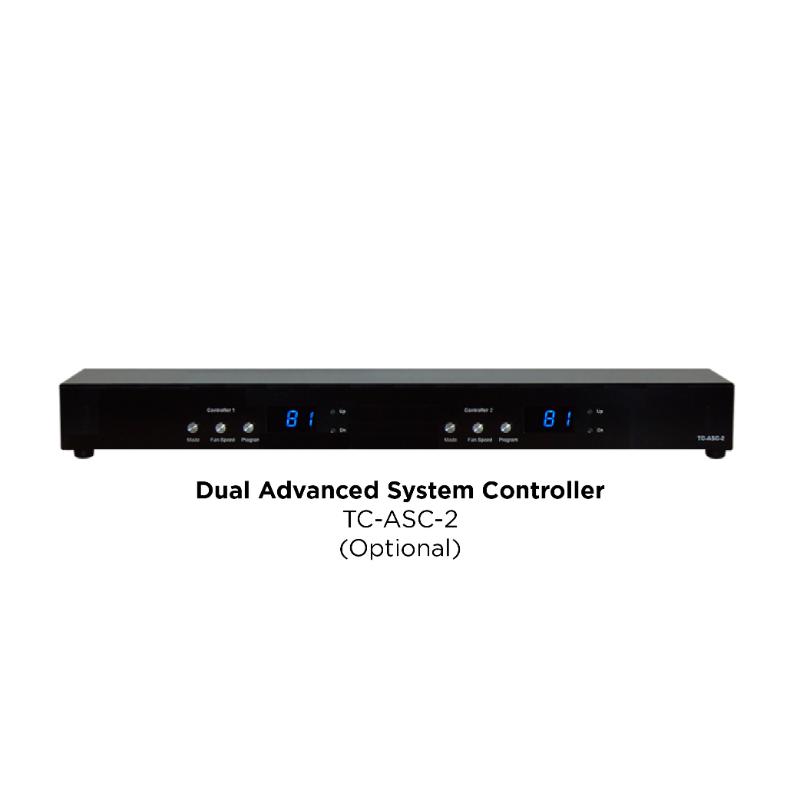

Optional TS-ASC Temperature controller:
Key Features:
- Ventilation system for server room drop ceilings

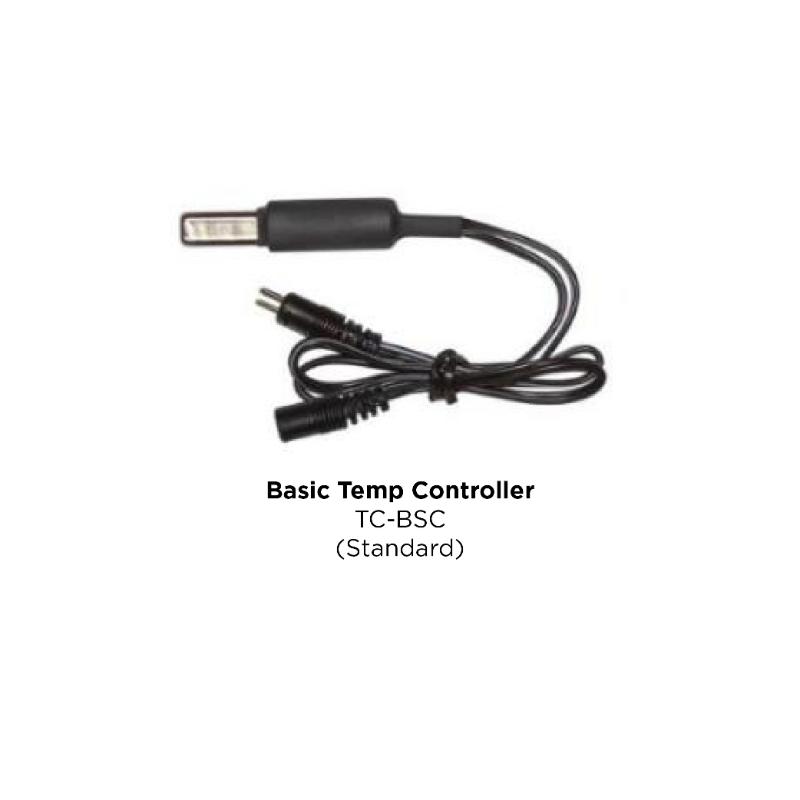

- Basic Temp Controllers included as standard: TC-BSC
- Optional controllers: TC-ALT, ASC, AVC
- Very aggressive airflow—up to 1000 CFM with optional configurations
