False Flooring (Fake) for Data Centers: Access Flooring Benefits, Safety, and Moisture Control



Every top-tier IT facility relies on a hidden hero beneath the server racks. While the blinking lights of servers and the hum of cooling units grab all the attention, the foundation of a reliable, scalable, and safe IT environment lies right beneath your feet. When planning facility infrastructure, investing in high-quality fake flooring (false flooring/access flooring) for data centers is one of the most impactful decisions you can make.

By elevating the floor, facilities create a hidden “plenum” (empty space) that solves multiple logistical nightmares simultaneously—ranging from complex cable routing to advanced thermal management.

Here is a comprehensive guide to understanding the benefits, safety protocols, and maintenance requirements of modern access flooring.



The Great Debate: Raised Floors vs. Hard Slabs



When architects and facility managers begin designing a new server room, they inevitably face the debate of a raised floor vs slab floor data center.

Slab floors (building directly on concrete) have gained some popularity due to lower initial construction costs and the ability to bear immense weight. However, access flooring remains the industry standard for enterprise data centers because of its unmatched flexibility. Raised floors conceal messy cabling, allow for easy layout changes, and provide a dedicated pathway for cold air.

If you opt for a raised system, you need to determine the right elevation. The standard height for data center raised floors typically ranges from 12 to 36 inches. A 12-inch height might suffice for smaller server rooms focusing primarily on cabling, while high-density facilities often require 24 to 36 inches to accommodate massive air volumes for advanced cooling.



Core Benefits: Cooling, Cabling, and Load Management

Superior Airflow and Temperature Control

Heat is the ultimate enemy of IT equipment. To combat this, modern facilities utilize underfloor air distribution systems. Computer Room Air Conditioning (CRAC) units push pressurized, chilled air into the empty space beneath the raised floor.

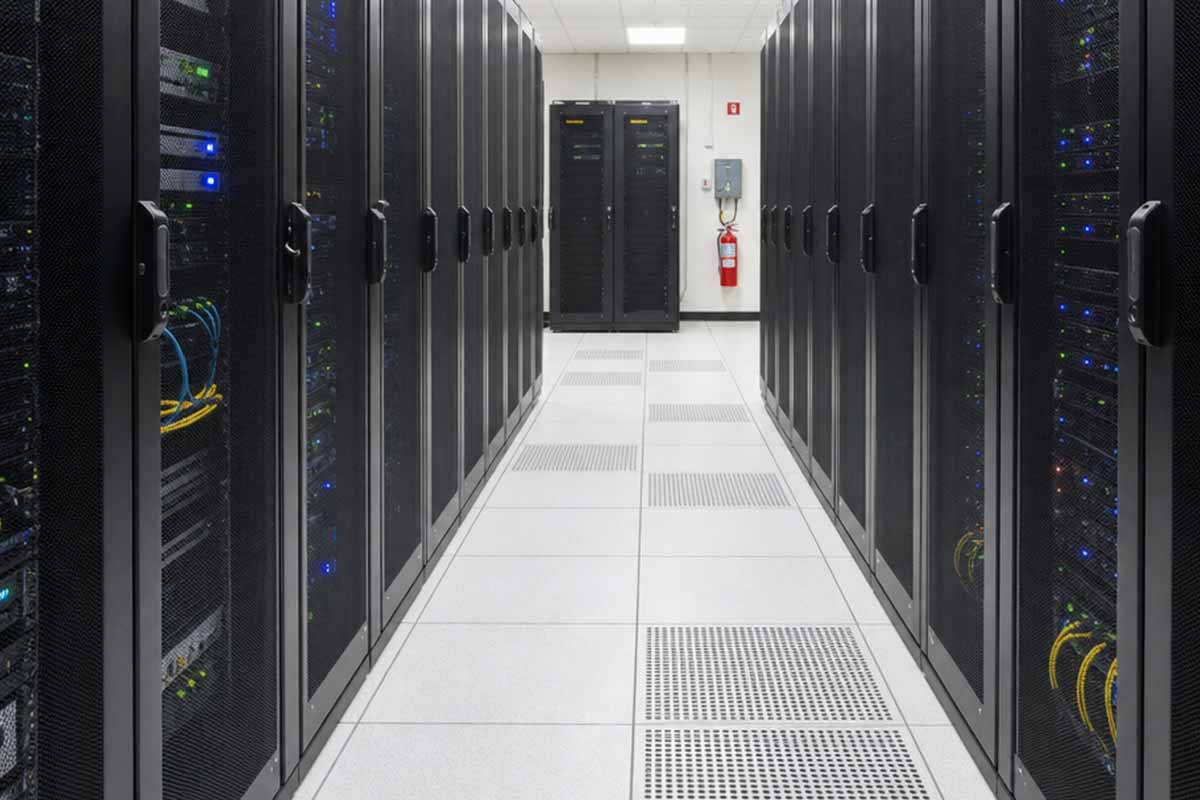

From there, the air needs an escape route. Facility managers use perforated floor tiles for airflow management—specialized panels with holes that allow cold air to blast upward exactly where it is needed, usually in the “cold aisles” facing the server intakes.

Actionable Tip: Strategically swapping out solid tiles for perforated ones directly in front of high-density racks is the most cost-effective method of improving data center cooling efficiency with floor tiles. Always ensure you use blanking panels in your server racks so the cold air doesn’t bypass your equipment!

Fake Flooring Efficient Cable Management

Beneath the false flooring panels lies a complex labyrinth of power feeds, fiber optics, and copper data cables. Without proper organization, this space can become a tangled, hazardous mess that actually blocks cold air from reaching the servers.

Implementing robust cable management solutions for underfloor systems—such as elevated wire trays and designated routing zones—keeps power and data lines separated, minimizes electromagnetic interference, and ensures unimpeded airflow.

False Flooring Supporting Heavy IT Equipment

Server racks are incredibly heavy, and battery backup (UPS) systems are even heavier. Consequently, calculating your data center raised floor load capacity is a non-negotiable safety step. You must account for both static loads (the stationary weight of the racks) and rolling loads (the weight of heavy equipment being wheeled across the floor during installation).

To guarantee this weight is supported safely, premium flooring systems rely on a grid of steel supports. The structural integrity of bolted stringers—horizontal steel bars that bolt into the vertical legs to lock the grid in place—prevents lateral shifting and guarantees the floor won’t buckle under the immense pressure of modern IT hardware.

Safety and Risk Mitigation in Server Rooms

Static Control and Material Selection

Data center equipment is highly sensitive to static electricity. A simple static shock from a technician walking across the room can fry thousands of dollars worth of circuit boards. Therefore, electrostatic discharge protection for server rooms is a mandatory feature built directly into the floor panel finishes.

When choosing these surface materials, designers usually evaluate high pressure laminate vs vinyl floor finishes.

• High Pressure Laminate (HPL): The standard for server rooms. HPL dissipates static electricity effectively, resists scratching, and does not require waxing (which could contaminate the air).
• Vinyl: Often used in cleanrooms or corridors. It is durable but typically requires more maintenance to retain its anti-static properties.

The Hidden Danger of Contamination

A lesser-known but highly dangerous risk in older facilities is the presence of zinc whiskers in data center flooring. Historically, floor panels and structural components were coated in electroplated zinc to prevent rust. Over time, this zinc can grow microscopic, hair-like metallic splinters. If these break off and are blown into the servers via the underfloor cooling system, they can cause catastrophic short circuits. Modern facilities combat this by using hot-dipped galvanized steel or powder-coated finishes that do not promote whisker growth.

Structural Safety and Earthquakes

In earthquake-prone regions, gravity alone isn’t enough to keep a raised floor stable. Implementing strict seismic bracing for raised floor systems is required by building codes. This involves reinforcing the underfloor support pedestals with diagonal steel braces bolted directly to the concrete subfloor, ensuring the entire grid moves as a single, rigid unit during a tremor, preventing catastrophic collapses.

False Flooring Installation and Maintenance Best Practices

Setting up a false floor requires precision engineering. Knowing exactly how to install access floor pedestals is the first step. Installers must use laser levels to ensure every single vertical pedestal is perfectly aligned. Even a millimeter of height difference can cause floor panels to rock, creating a tripping hazard and compromising the floor’s structural integrity.

Once the floor is installed, safety protocols must be followed during daily operations.

• Always use the right tools: Technicians should never pry panels up with screwdrivers. Using proper access floor panel lifter tools (heavy-duty double suction cups) ensures panels are removed safely without chipping the delicate HPL edges or risking severe back injuries.
• Limit open panels: Never leave too many floor tiles open at once. This depressurizes the underfloor air plenum, causing servers across the room to suddenly overheat due to a lack of airflow.
• Keep it spotless: Rigorous cleaning and maintenance of server room flooring is vital. Use only specialized data center cleaning vacuums equipped with HEPA filters. Never use soaking wet mops on a raised floor, as water can seep between the tiles, leading to subfloor moisture pooling, rust, or even dangerous electrical shorts near underfloor power cables.

Conclusion

Access flooring is much more than just a place to walk. It is a highly engineered, dynamic system that manages weight, organizes critical infrastructure, mitigates static electricity, and drives cooling efficiency. By prioritizing high-quality materials, proactive maintenance, and strict safety standards, you ensure that your data center remains a secure, high-performing environment ready to handle the IT demands of the future.
